£5,200.00

£5,200.00

Select Size:

Enquire
  • Product Description

    ALL MOUNTAIN TRAIL

    BLISS TRAIL POPPING, PLAYFUL FUN

    UP, DOWN, AND EVERYTHING IN BETWEEN

    The all-new Mount Vision from Marin embodies the true spirit of mountain bikes, designed to make the climbs effortless and the descents mind-blowing. The Mount Vision is equipped with 150mm of travel front and rear, a perfect balance of suspension and playfulness.

    The rear suspension features the Naild R3ACT – 2 Play system, which brings riders the best in rear suspension with size specifickinematics and ground tracing performance. The Mount Vision is the new benchmark for 27.5” trail bikes.

  • Specification

    FRAME

    Full Unidirectional Carbon Fiber Frame, Naild R3ACT – 2 Play Suspension Technology, 27.5" Wheels, 150mm Travel, 148mm Boost Rear Spacing, Bolt On Thru-Axle

    FORK

    RockShox Pike RC 27.5”, 150mm Travel, Compression and Rebound Adjustment, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 46mm Offset

    SHOCK

    RockShox Deluxe R, 210x60mm, Rebound Adjustment, Custom Tune, Trunnion Mount

    RIMS

    Stan's No Tubes Sentry S1, 32mm Inner, Pinned Joint, BST Technology, Tubeless Compatible

    HUB REAR

    Forged Alloy, 148x12mm, Quad Sealed Bearings, 6-Bolt Disc, 32H

    HUB FRONT

    Forged Alloy, 110x15mm, 6-Bolt Disc, 32H

    SPOKES

    14g Black Stainless Steel

    TIRES

    WTB Trail Boss 27.5x2.6", Tri-Tech Triple Compound, Fast Rolling, Light Casing with Slash Guard, TCS Aramid Bead, Tubeless Compatible

    DERAILLEUR REAR

    SRAM GX Eagle 12-Speed

    SHIFT LEVER

    SRAM NX Eagle 12 Speed

    CRANKSET

    SRAM Descendant 6K Aluminum, Direct Mount 12-Speed 32T, Boost Spacing

    BOTTOM BRACKET

    SRAM GXP BB92

    CHAIN

    SRAM NX Eagle 12-Speed

    CASSETTE

    SRAM XG-1275 12-Speed, 10-50T

    BRAKES FRONT

    Shimano XT MT520 4-Piston Hydraulic Disc, 203mm Rotor

    BRAKES REAR

    Shimano XT MT520 4-Piston Hydraulic Disc, 180mm Rotor

    BRAKE LEVERS

    Shimano MT500

    HANDLEBAR

    Marin Mini-Riser, 6061 Double Butted Aluminum, 25mm Rise, 780mm Width, 5o Up, 9o Back

    STEM

    Marin 3D Forged Alloy, 35mm

    GRIPS

    Marin Locking

    HEADSET

    FSA Orbit, No. 42/47/ACB/S-4, Sealed Cartridge Bearings, 1 1/8"x 1 1/2”

    SEATPOST

    KS LEV Integra Dropper Post, Southpaw Lever, Size S 120mm Travel, All Other Sizes: 150mm Travel

    SADDLE

    WTB Volt Race

  • Dimensions
    Type S M L XL
    STACK (A) 586.6 600 618 630
    REACH (B) 432.2 453 471.5 493
    HEADTUBE ANGLE (C) 65 65 65 65
    HEADTUBE LENGTH (D) 90 105 125 138
    SEATTUBE ANGLE (VIRTUAL) (E) 62.6 63.1 64.1 64.1
    SEATTUBE ANGLE (ACTUAL) (F) 75.5 75.3 75.1 75
    SEATTUBE LENGTH (G) 395 430 465 502
    TOPTUBE(ACTUAL) (H) 516 538 563 585
    TOPTUBE (EFFECTIVE) (I) 581.2 603 626 650
    BOTTOM BRACKET HEIGHT (J) 330 330 330 330
    BOTTOM BRACKET DROP (K) 30 30 30 30
    CHAINSTAY (L) 420 420 420 420
    WHEELBASE (M) 1160 1187 1213 1240
    STANDOVER HEIGHT (N) 716 717 728 749
    FORK OFFSET (9 & PRO) (O) 44 44 44 44
    FORK OFFSET (8) (O) 46 46 46 46
    SEATPOST DIAMETER 30.9 30.9 30.9 30.9
    HANDLEBAR WIDTH (9 & PRO) 787 787 787 787
    HANDLEBAR WIDTH (8) 780 780 780 780
    STEM LENGTH 35 35 35 35
    CRANK LENGTH 170 170 170 170
  • Key Features
    Mv Detail2 2000X1298

    NAILD R3ACT – 2 PLAY SUSPENSION

    The revolutionary Naild R3ACT — 2 Play Suspension gives the Marin Mount Vision a true performance advantage over traditional systems. By isolating the rider’s mass from acceleration forces, a new benchmark in pedaling efficiency and bump absorption is achieved. What this means for the rider is no lockouts, no loss of power transfer, and the best traction you have ever had.

    20 Mrn Mv Static 56

    GROUND TRACING

    At the heart of the Naild R3ACT – 2 Play system, Ground Tracing kinematics allows the rear wheel to follow the contours of the trail, providing the rider improved wheel contact and loading with the ground as the bike moves over bumps. Increasing the time that the wheel is on the ground not only guarantees maximum control over terrain, it also increases efficiency by allowing the bike to recover energy off the backside of bumps.

    20 Mrn Mv Action 3

    SIZE-SPECIFIC KINEMATICS

    The Mount Vision was designed using anthropometric data to define rider position and center of gravity. From this data, Marin worked with Naild to develop two separate kinematics, one for sizes small and medium and one for sizes large and extra-large.

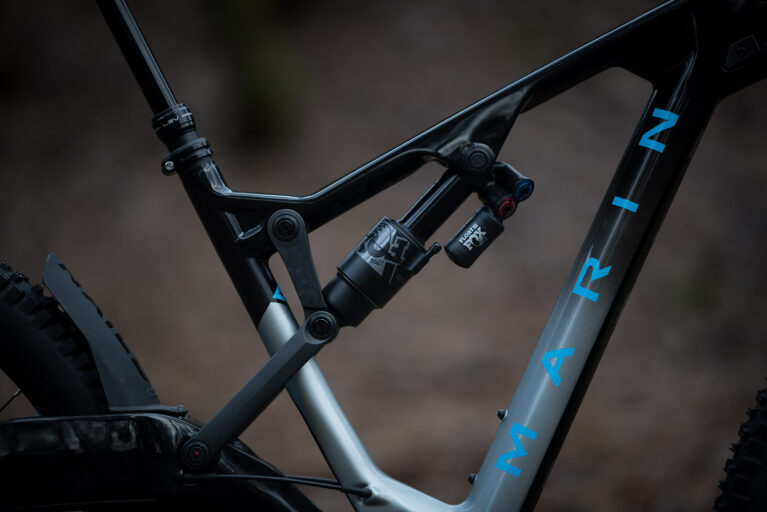

    20 Mrn Mv Static 12

    CARBON FIBER FRAME

    CARBON FIBER FRAME
